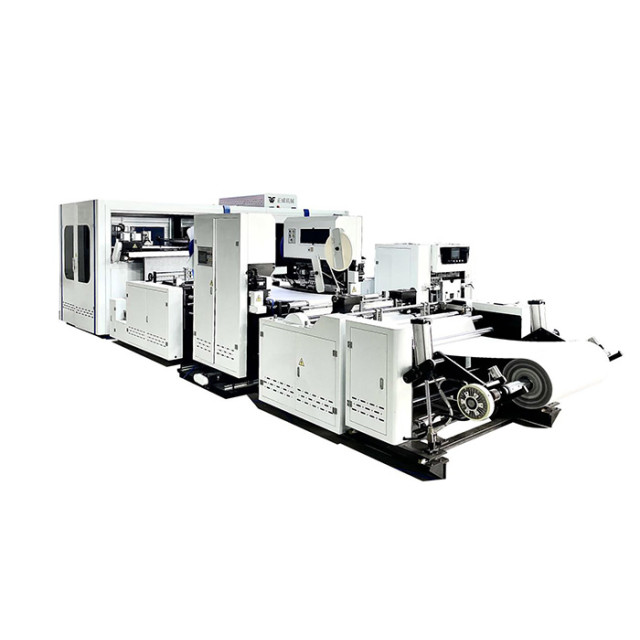

1. Twelve sets of servo motors (mould servo 17KW 22KW) for the whole machine ensure high-speed and stable operation of the equipment.
2. Using the material saving device (no waste on the edge), each bag saves 6MM material.
3. The equipment structure is U-shaped, covering an area of only 5.3 meters * 7.5 meters, saving site costs.
4. The function of automatic deviation correction of bag mouth and strip center distance is adopted to ensure that the bag mouth of each bag is flat and the strip is centered, which greatly improves the qualified rate of finished products.
5. The degree of automation is high, and the mold changing machine is automatically positioned, which greatly improves the efficiency.
6. Easy to operate, one person can complete bag making and packing.
7. Diversified bag-making functions, in addition to handbags, the function of punching pockets is also provided; in addition, additional functions such as stringing bags, buttoning bags, zipper bags, labeling bags, and multi-material splicing bags can also be selected later.

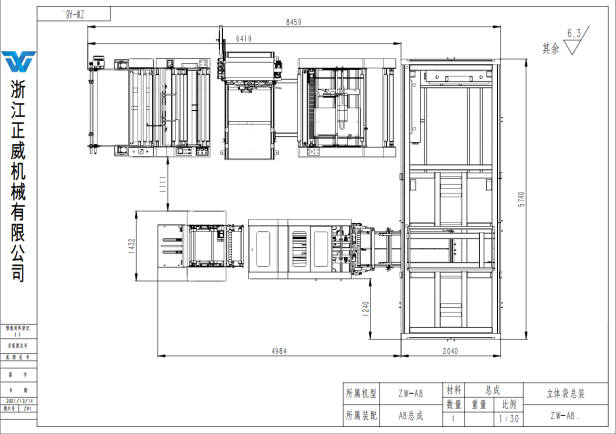

ZW-A8 (Zhenzhi Edition) diagram:
⑴: Non-woven roll material, the maximum roll diameter is 1.20 meters.
⑵: Automatic feeding correction device. Motor smoothly feeding; photoelectric tracking correction; no material stop; automatic tension.
⑶: Independent uniform tension device. Ensure that the tension of the coil directly from the largest to the smallest of the whole machine is uniform.
⑷: Folding and ironing device. Handwheel screw adjustment, ultrasonic welding.
⑸: Correction device for the rear machine. Control the center of the fabric of the rear machine and the front machine to ensure the bag opening is neat.
⑹: Handle coil material, the maximum coil material diameter is 1.2 meters.
⑺: Double automatic ironing device. Handle length 380mm-600mm; handle width 25mm-30mm; stop without material, stop without hot handle.
⑻: rear feeding device. Cooperate with the front feeding device to control the fabric tension when tracking the indentation.
⑼: Tracking indentation device. Color mark tracking; side indentation.
⑽: Front feeding storage device. Double tracking feeding; pre-stored sheet material to improve the speed of the whole machine; cold cutting knife.
⑾: Operation panel. Large touch screen operation; can swing 90 degrees, the interface is clear and easy to operate.
⑿: Double servo pulling device. The double servo adjusts the cloth and the mold to control the uniformity of the bag mouth. High-speed servo improves the speed of the whole machine.
⒀: Mould device. The servo synchronous wheel running device is high-speed and silent; the mold positioning device is convenient for changing molds.
⒁: side plug; bottom plug; ultrasonic welding device. Full motor structure, precise and high speed. The motor automatically adjusts the distance and is easy to operate.
⒂: Unpacking device. Four groups of unpacking can be adjusted independently. Easy to operate.
⒃: Automatic bag folding device. At the same time, the finished three-dimensional bags are folded and flattened, and stacked together.
Technical parameter:
|
power supply |
380v |
|
|
|
Applicable raw materials |
Non-woven fabric, PP film, woven material lamination (cylindrical; lamination) |
Average power |
15-20KW |
|
Material thickness |
50-120g |
Production speed |
70-100个/分钟 |
|
Bag height |
150-450mm |
bag front width |
180mm - 570mm |
|
Bag side width |
70-200mm |
Total Weight |
11500kg |
|
Feed width |
370-1160mm |
Bag strip |
400 - 600mm |
|
Installation size |
Length 7.8 meters × width 5.2 meters × height 2.5 meters |
||
